ATS VB-ES1 Vertical Band Saw Guard | High-Visibility Safety Shield for 15"+ Saws | Adjustable 7" Lexan & Aluminum Frame | Made in USA
Product details
| Management number | 209964541 | Release Date | 2026/04/02 | List Price | $88.00 | Model Number | 209964541 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

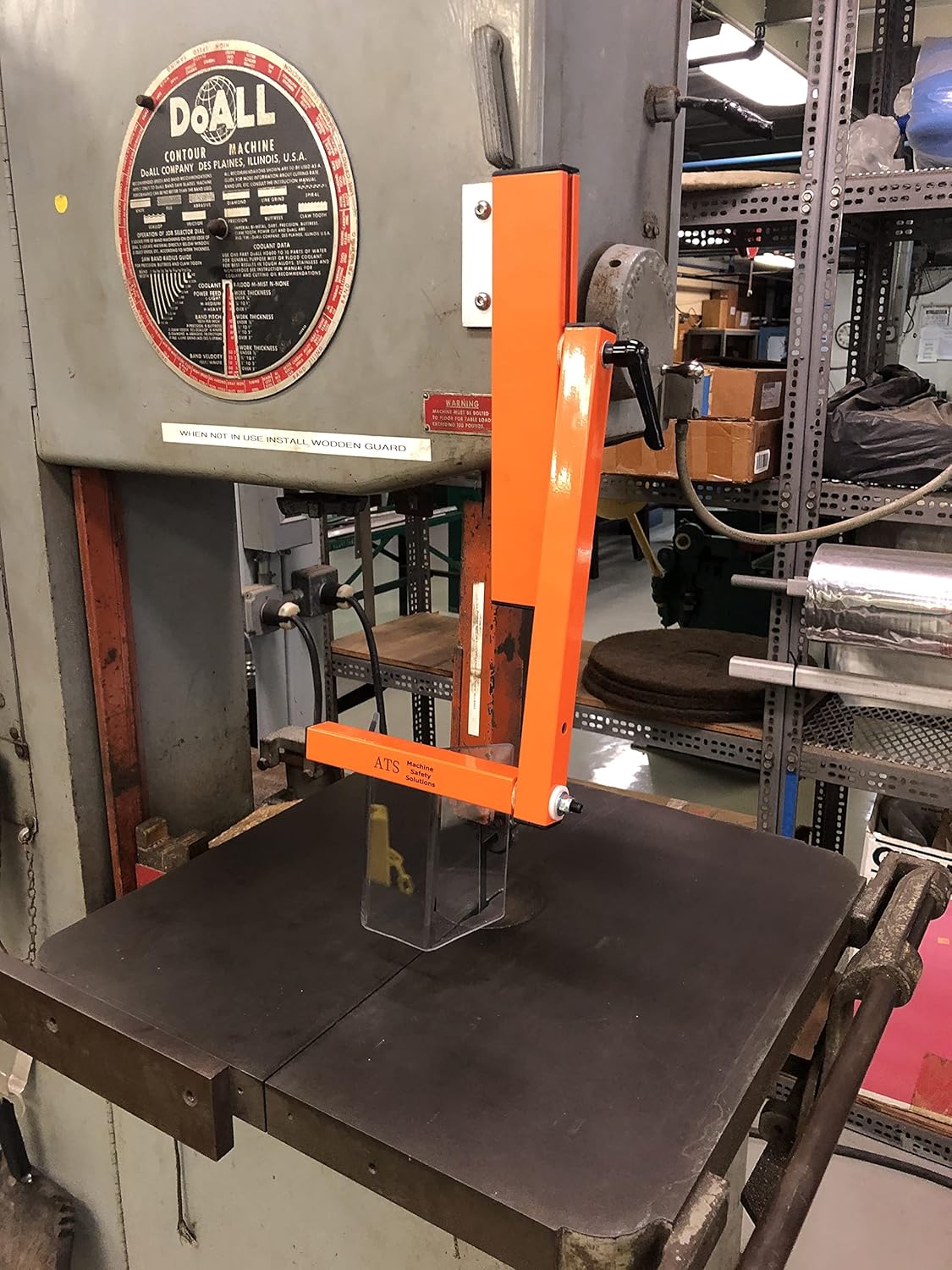

- Shields operators from blade contact and flying debris on vertical band saws: For floor-standing saws 15 inches and larger cutting both wood and metal. Trusted in job shops, school programs, and production facilities. OSHA and ANSI compliant.

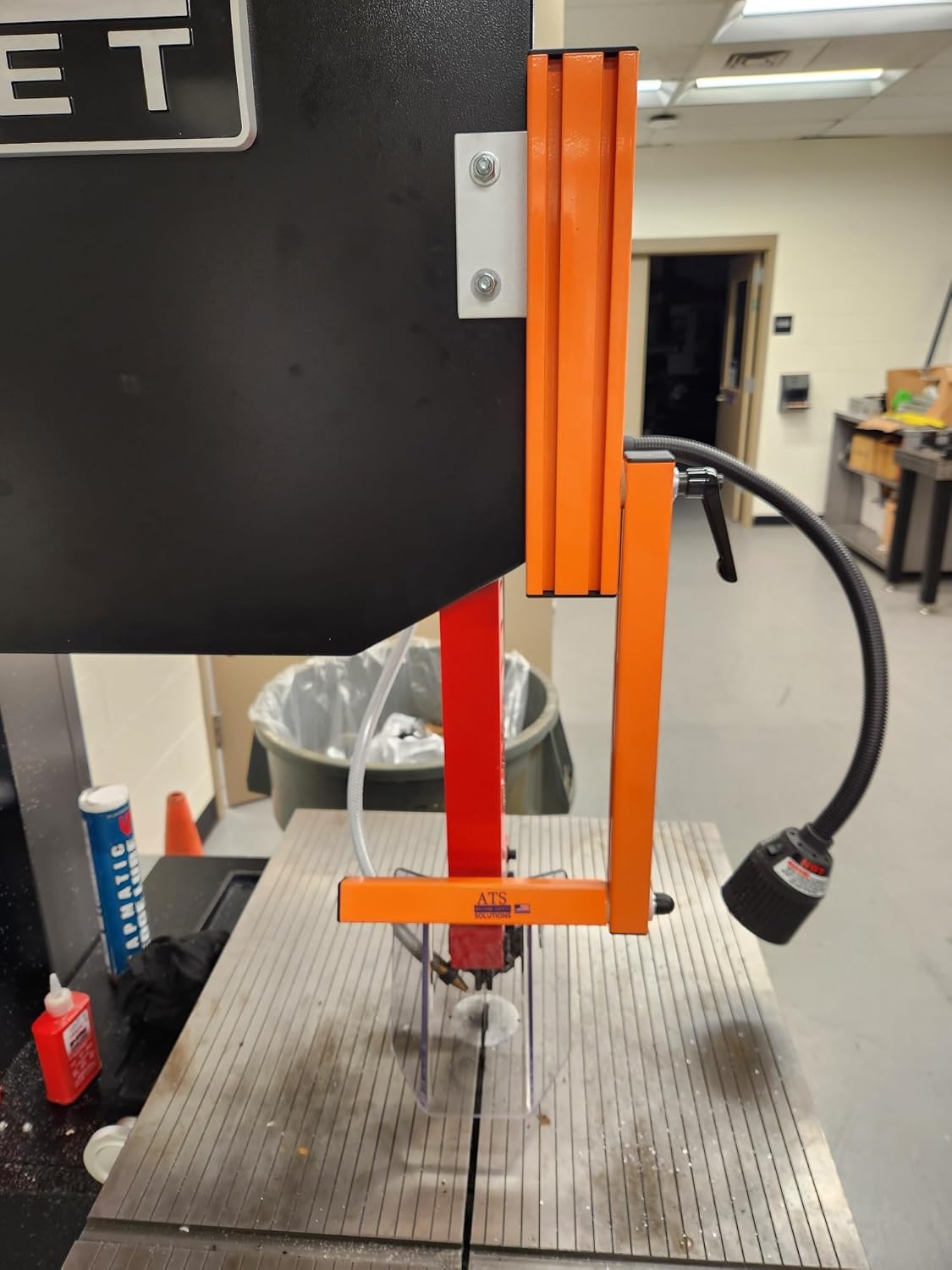

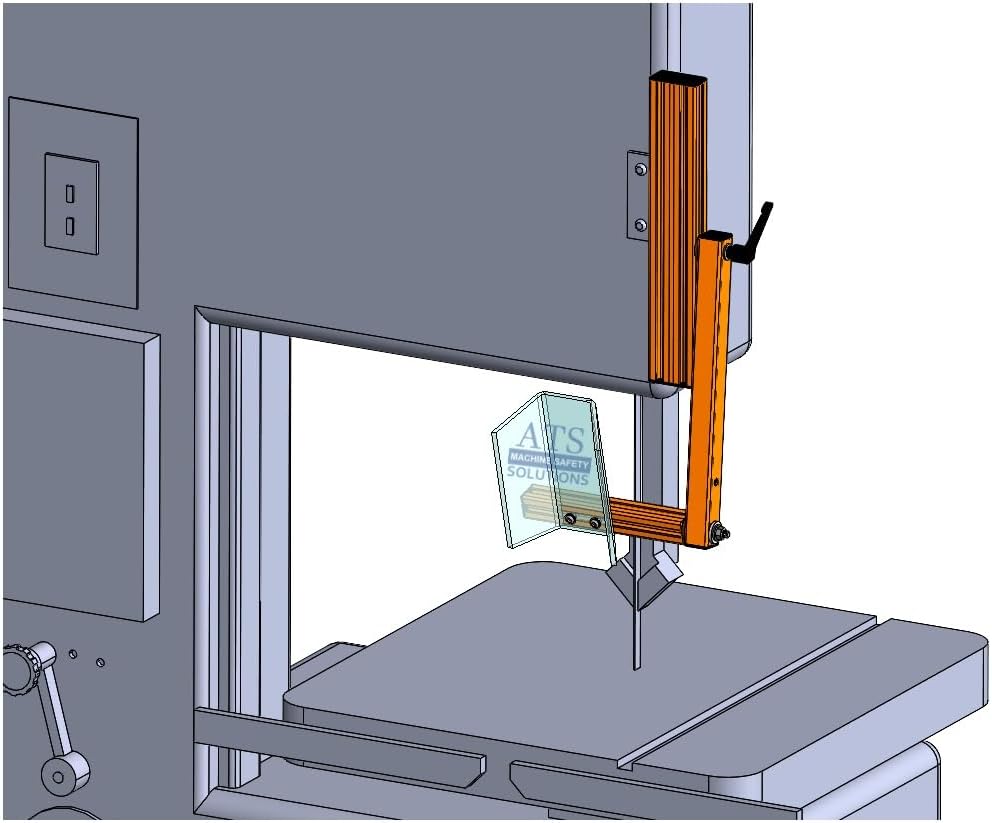

- Two mounting options in one kit for most saw configurations: Mount to the front door via supplied bracket, or to the upper housing if the door does not allow bracket mount. Requires drilling 2 holes. Hardware for both methods included.

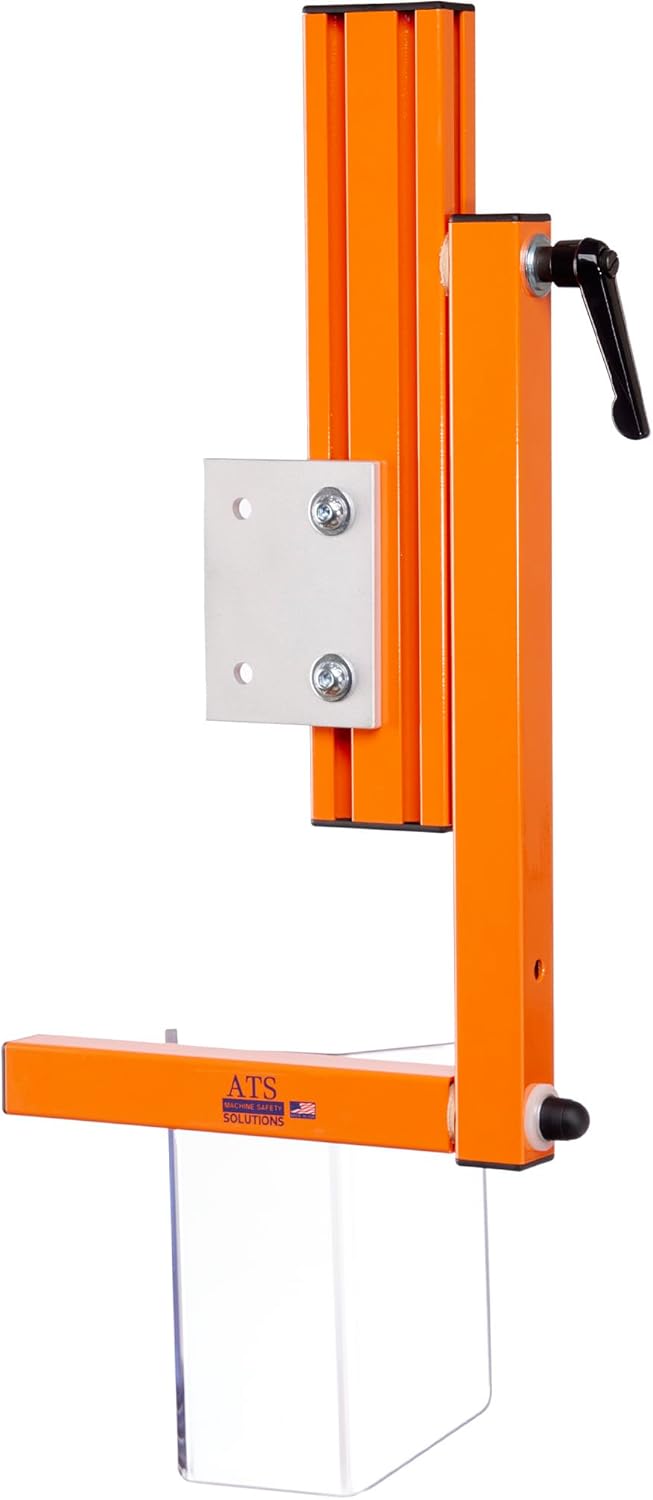

- 6061 aluminum extrusion frame with PPG OSHA Safety Orange powder coat: Resists corrosion and warping under coolant, chips, and daily production wear. 1/4 inch Lexan shield provides impact-resistant, distortion-free visibility.
- Lexan shield adjusts to any height and locks without drifting during cuts: 6 by 7 inch Lexan on 30mm T-slot extrusion. Adjusts in, out, up, and down. Steel arm locks position over the blade. Replacement shields in 5, 7, 10, and 12 inch heights.
- Backed by a 1-year warranty, and only the Lexan shield ever needs replacing: The 6061 aluminum frame is a one-time installation. Replacement Lexan shields stocked and sold separately. For floor-standing saws 14 inches and under, see VB-ES0.
| Color | Orange |
|---|---|
| Brand Name | ATS Machine Safety Solutions |
| Blade Shape | Rectangular |
| Blade Length | 7 Inches |
| Manufacturer | ATS Safety |
| Model Number | VB-ES1 |
| Power Source | Manual |
| Cutting Angle | 180 Degrees |
| Warranty Type | Limited |
| Blade Material | High Speed Steel |
| Handle Material | Metal |
| Specification Met | OSHA |
| Included Components | Attachments |
| Surface Recommendation | Metal, Wood |
| Manufacturer Part Number | VB-ES1 |
| Other Special Features of the Product | Depth Adjustment |
